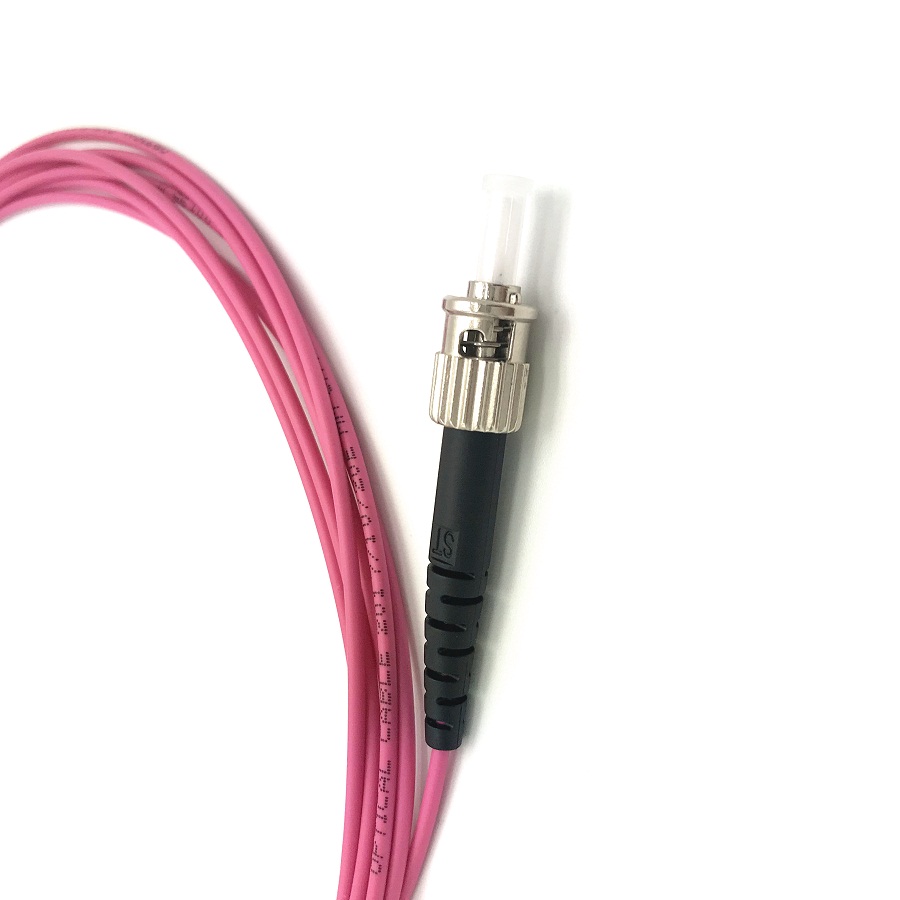

Indoor cable jumper SC TO ST

  • Indoor cable jumper SC TO ST
  • Indoor cable jumper SC TO ST
  • Indoor cable jumper SC TO ST
  • Indoor cable jumper SC TO ST

Indoor cable jumper SC TO ST

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 100 Bag/Bags
    Delivery Time: 15 Days
    Transportation: Ocean,Air
    Port: Shanghai,Shenzhen,Ningbo

Basic Info

Model No.: SC TO ST APC/UPC SM MM

Product Description

Fiber Optic Patch Cable is also known as fiber optic jumper or Fiber Optic Patch Cord. It is composed of a fiber optic cable terminated with different connectors on the ends. We can provide complete product customization services, fiber connector, length, color, fiber grade, specification, materials, packaging and so on. SC-ST Fiber Patch Cord can be divided into single mode, multi-mode, simplex, duplex, according to difference of the end face have the type PC, UPC, APC, such as SC/UPC-ST/UPC, SC/APC-ST/UPC, and son on.
ORDERING INFORMATION

EXAMPLE

PIGTAIL: SCU-A1S9L3 (SC/UPC-G.657A1-SIMPLEX-0.9MM-LSZH-3M)

PATCH CORD: SCU-SCU-A1S9L3 (SC/UPC-SC/UPC-G.657A1-SIMPLEX-0.9MM-LSZH-3M)

SCU SC/UPC

FIBER TYPE

CABLE

CABLE SIZE

JACKET

LENGTH

SCA SC/APC

D G.652D

S SIMPLEX

9 0.9MM

L LSZH

1 1M

A1 G.657A1

D DUPLEX

2 2.0MM

P PVC

2 2M

A2 G.657A2

3 3.0MM

3 3M

M1 OM1(62.5/125)

X XM

M2 OM2(50/125)

M3 OM3(50/125)

M4 OM4(50/125)

1. Dada sheet

Testing Condition

(dB)

SM

MM

APC

UPC

PC

Optical Performance

IL(dB)

1310/1550nm LD Light

0.25

0.2

0.2

0.2

RL(dB)

1310/1550nm LD Light

60

50

50

Environment

Performance

High Temperature

+85℃,168H

0.2

Temperature cycle

-40~+75℃,21cycle,168H

0.2

Humidity thermal(Fixed)

5℃,95%R.H.,168H

0.2

Humidity thermal cycle

10~+65℃,95%R.H.,21 cycle,168H

0.2

Mechanical Performance

Vibration

10~55Hz,1.5mm(p-p)

0.1

Bending

0.9kgf,-90°~+90°,100cycle

0.1

Torsion

2.5kgf,10times/min,±180°,200times

0.1n

Anti-tension

90N,10min

0.1

Dropping

1.5 height, 8 times

0.2

Repeat

10 Times inserts

0.1

Durability

>1000times

0.2

2. Mechanical Performance and Working temperature

Working temperature

-40 to 80

Storage Temperature

-5 to 50

φ3.0 Fiber Curl Radius

30

Mm

φ3.0 Anti-tensile strength

9.0

Kgf

3. 3D Index

APC

UPC

Radius of cury

5-12

10-25

7-25

Apex offset um

0-50

Angle

7.5-8.5

sc upc 2.0mm simplex mm OM4 connectorst upc 2.0mm simplex mm OM4 connectorcompany team(1)
