SC/APC 1*16 Insert Type PLC Splitter

  • SC/APC 1*16 Insert Type PLC Splitter
  • SC/APC 1*16 Insert Type PLC Splitter
  • SC/APC 1*16 Insert Type PLC Splitter
  • SC/APC 1*16 Insert Type PLC Splitter

SC/APC 1*16 Insert Type PLC Splitter

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 100 Bag/Bags
    Delivery Time: 15 Days
    Transportation: Ocean,Air
    Port: Shanghai,Shenzhen,Ningbo

Basic Info

Model No.: SC/APC 1*16 PLC

Product Description

Product Description

The insert splitter is used for the user access point in the FTTX system, which mainly completes the Optical Fiber end of the residential area or building, and has the functions of optical fiber fixation, stripping, fusion, jumper and shunt, etc. After the splitter, it enters the end user in the form of household optical fiber.

There are currently 1 x N and 2 x N.1 x N and 2 x N evenly inputs the optical signal from a single or double inlet into multiple outlets, or work backward to integrate multiple optical signals into a single or double fiber.

Key Feature:

Low insertion loss, high Return Loss

Compact for small application areas like in closure or splice trays

Wide Operating Temperature and Wavelength

Excellent Environmental & Mechanical Stability

Application:

Optical Signal Distribution

Lan and CATV System

FTTX Deployment

FTTH Network

Passive Optical Networks (PON)

Local Area Networks (LAN)


Specification:

Parameter for Plc Splitter

Parameter

1x2

1x4

1x8

1x16

1x32

1x64

Attenuation Value(dB)

≤3.7

≤7.5

≤11

≤14.5

≤18

≤22

Loss Uniformity(dB)

≤0.8

≤0.8

≤1.0

≤1.4

≤1.9

≤2.5

Return Loss(dB)

APC

≥60

UPC

≥60

PDL(dB)

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

≤0.3

Directivity(dB)

≥55

≥55

≥55

≥55

≥55

≥55

Operating Temperature(oC)

-40~85

Storage Temperature(oC)

-40~85

Operating Bandwidth(nm)

±40

Operating Wavelength(nm)

1260~1650

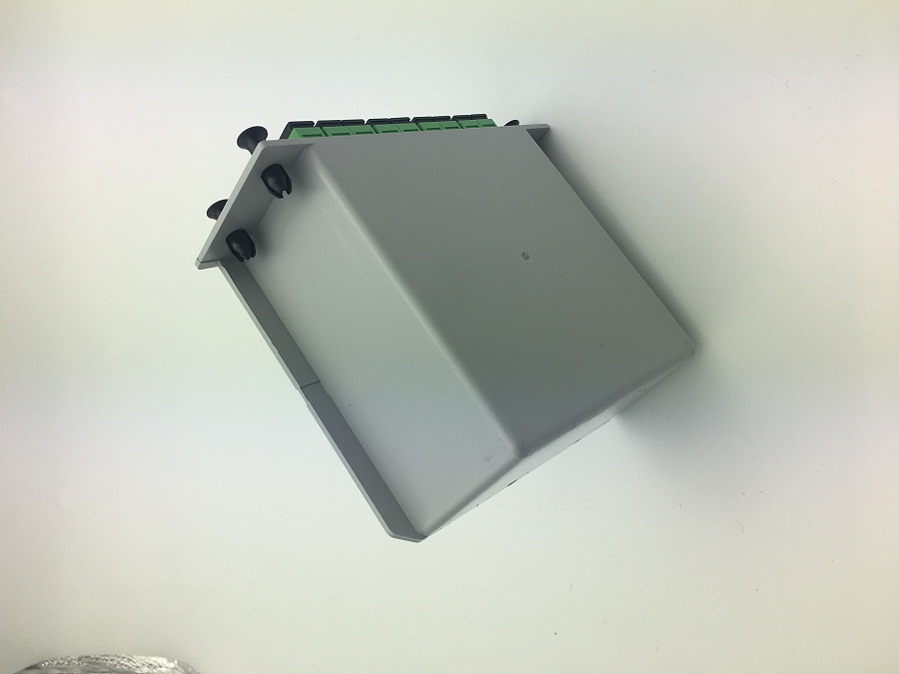

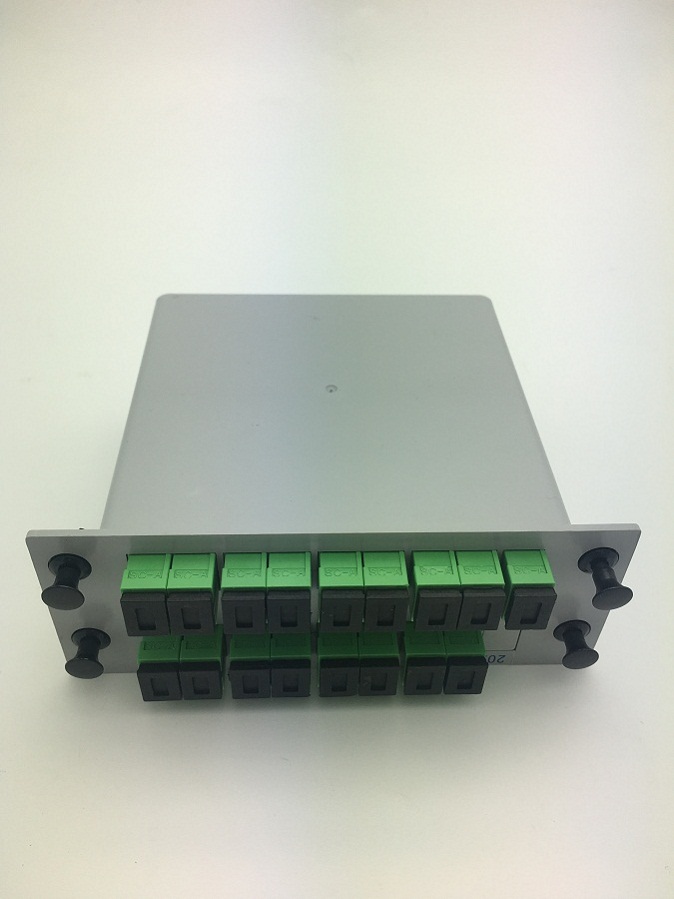

SC APC 1X16 (4)SC APC 1X16 (5)
