High performance portable optic spectrometer for raman

High performance portable optic spectrometer for raman

    Payment Type: T/T,Western Union
    Terms of Trade: FOB
    Min. Order: 1 Piece/Pieces
    Delivery Time: 15 Days
    Packaging: Static free plastic bag and carton, Protective packing
    Productivity: 500
    Brand: CNI
    Transportation: Air
    Place of Origin: China (Mainland)
    Supply Ability: 500
    Certificate: ISO9001 FDA CE Rohs
    HS Code: 9013200099
    Port: Beijing,Shanghai,Shenzhen

Basic Info

Model No.: Aurora 4000

Product Description

High Performance portable Optic Spectrometer for Raman

Wiith the features of Small appearance, easy to carry, convenient operation, customized wavelength range and resolution and fit various applications support, the spectrometer Aurora 4000 is widely used in the fileds of biological cell analysis, chemical research, LED analysis, absorbance measurement and so on. Besides , it supports download for spectral analysis 5.0

*NEW: Customized wavelength up to 1177 nm!




Toshiba TCD1304DG linear CCD array

Wavelength range



3648 pixels

Pixel size



130 photons/count at 400nm
60 photons/count at 600nm


Dimensions (mm)


Weight (g)


Optical resolution

<0.75nm FWHM (Depending on the grating mark density and the slit size, available in a variety of options)

Signal-to-noise ratio

300:1 (at full spectrum)

Dark noise

12RMS counts

Dynamic range

2*109 (system)

Integration time


Stray light

<0.05%@600nm; <0.10%@435nm

Corrected linearity


Optical Bench


f/4, Symmetrical crossed Czerny-Turner

Focal length

101.6mm input and output

Entrance aperture (um)

5,10,25,50,100 or 200


A variety of different grating, ultraviolet and infrared

Fiber Optic Connector

SMA905 to 0.22 numerical aperture single-strand fiber


Power consumption


Trigger mode

4 kinds

Data transfer speed

Full scans into memory every 4 ms with USB 2.0; every 18 ms with USB 1.1


5 inputs and 5 outputs (opto-isolator inputs/outputs)

Analog channels

One 12 analog input one 12 analog output


30-pin connector

Available Model of aurora 4000

Wavelength Customizable Spectrometer

application of aurora spectrometer

Packing & Delivery
Company Information
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.

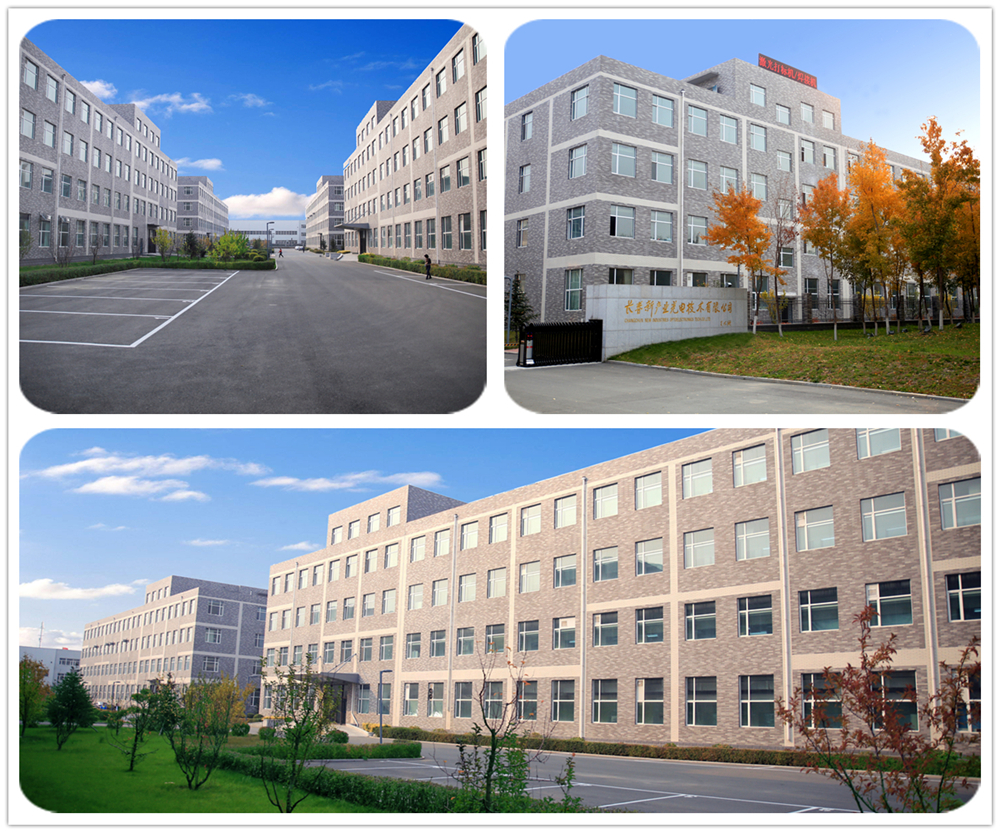

Our Company

1. What about the delivery?


2. What about the warranty?

For 1 year

3.How to pay?

T/T Western Union


Spectral range

Aurora4000 General series

GE 350-1100nm

GE 200-1100nm

GE Raman

Aurora4000 External Triggering series

TG 350-1100nm

TG 200-1100nm

Typical Spectrometer

Wavelength Customizable Spectrometer


Entrance aperture

Spectral range

Optical resolution


10 μm

200-347 nm 0.14
226-369 nm 0.18
310-404 nm 0.16
319-455 nm 0.13
400-480 nm 0.08
423-547 nm 0.12
480-568 nm 0.12
546-653 nm 0.12
568-634 nm 0.09
654-754 nm 0.10
748-837 nm 0.23
794-876 nm 0.24
876-940 nm 0.20
940-1100 nm 0.20
